Rotary Drum Filter
Drum Filtration has been in use for many years, both by the municipal water industry and the commercial fish farming industry as well as for other industrial applications.
Hot Recommend

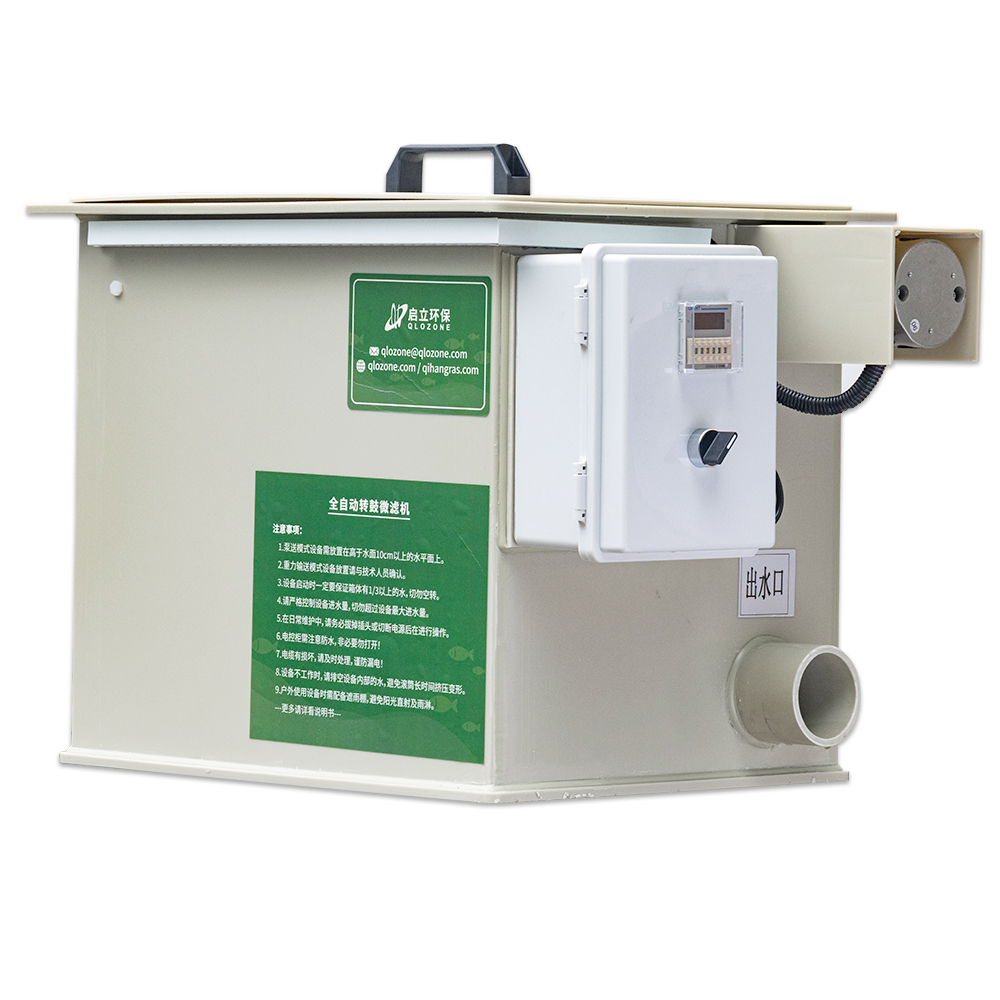

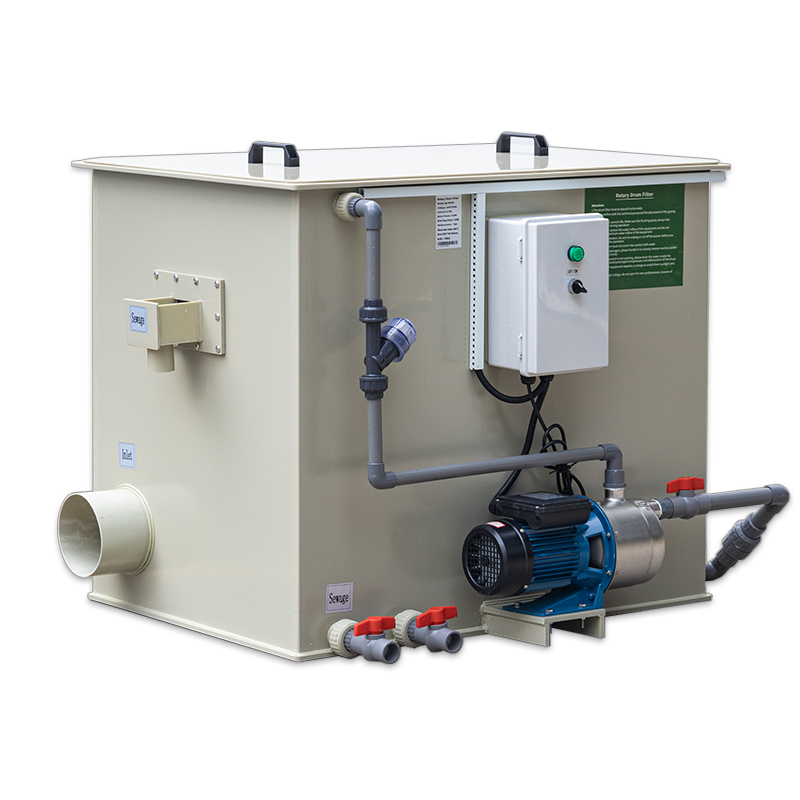

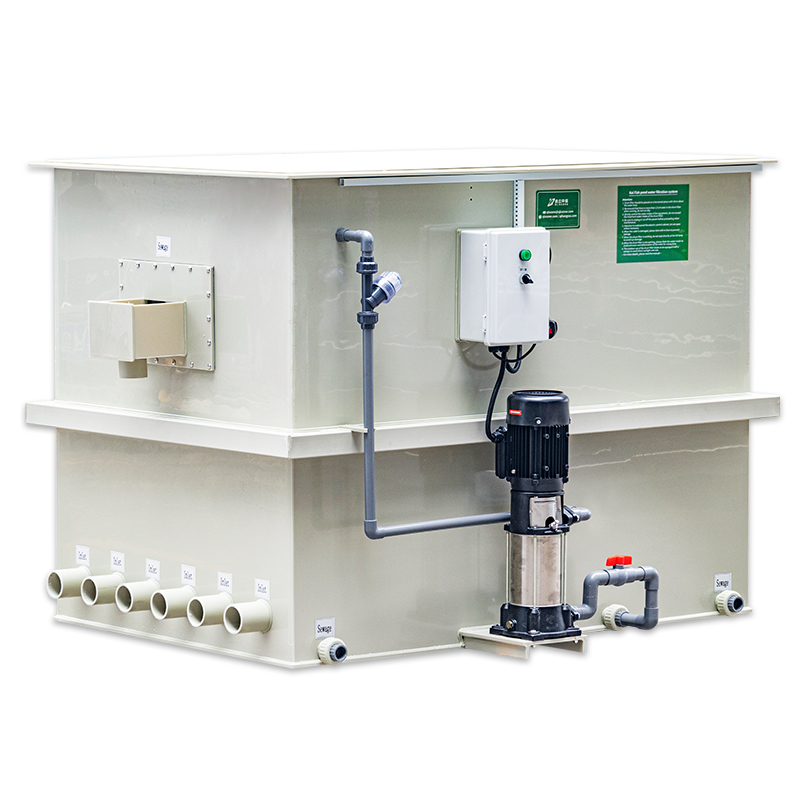

Water Purification Drum Filters
The shell of PM Rotary Drum FIlter series is made of PP material (Polypropylene), a non-toxic material, so PM-RDF series is very suitable for aquaculture.The filters are covered with industrial filter panels with a woven (SS 316) stainless steel mesh of 70 microns.On request, different mesh sizes,inlet size and outlet size are certainly customized.
- Filtration without flow interruption
- Filtration degree from 70 micron to 1000 micron
- Manufacturing program: 5m³/h – 300 m³/h
- No need for pressure
- Low water loss
- Applications: Public Aquariums, Waterparks, Zoos, Water and waste water treatment, water supply systems, irrigation, cooling towers,pre-filtration systems,manufacturing, industry, aquaculture

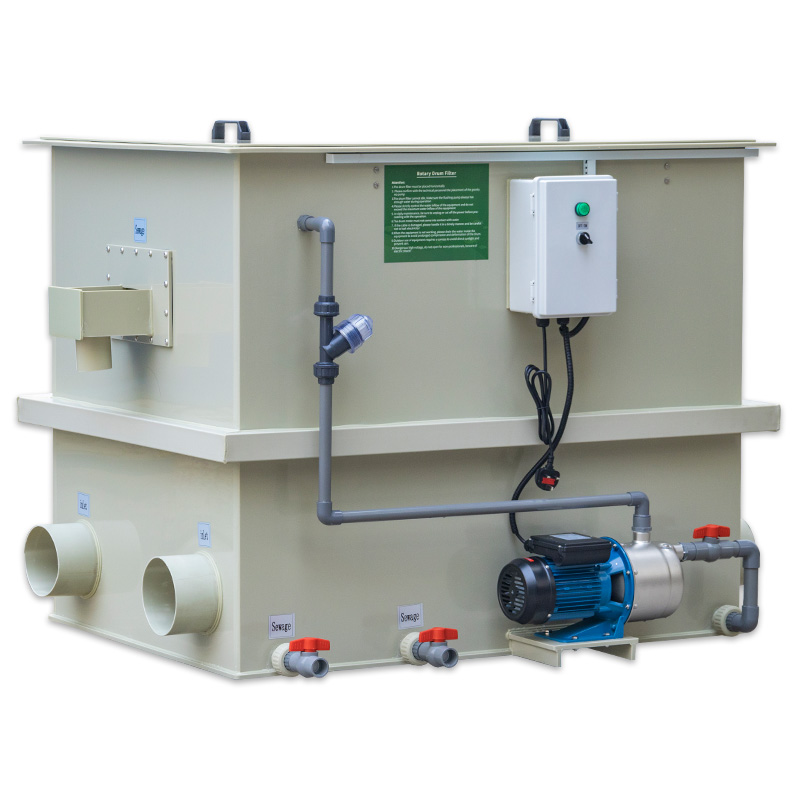

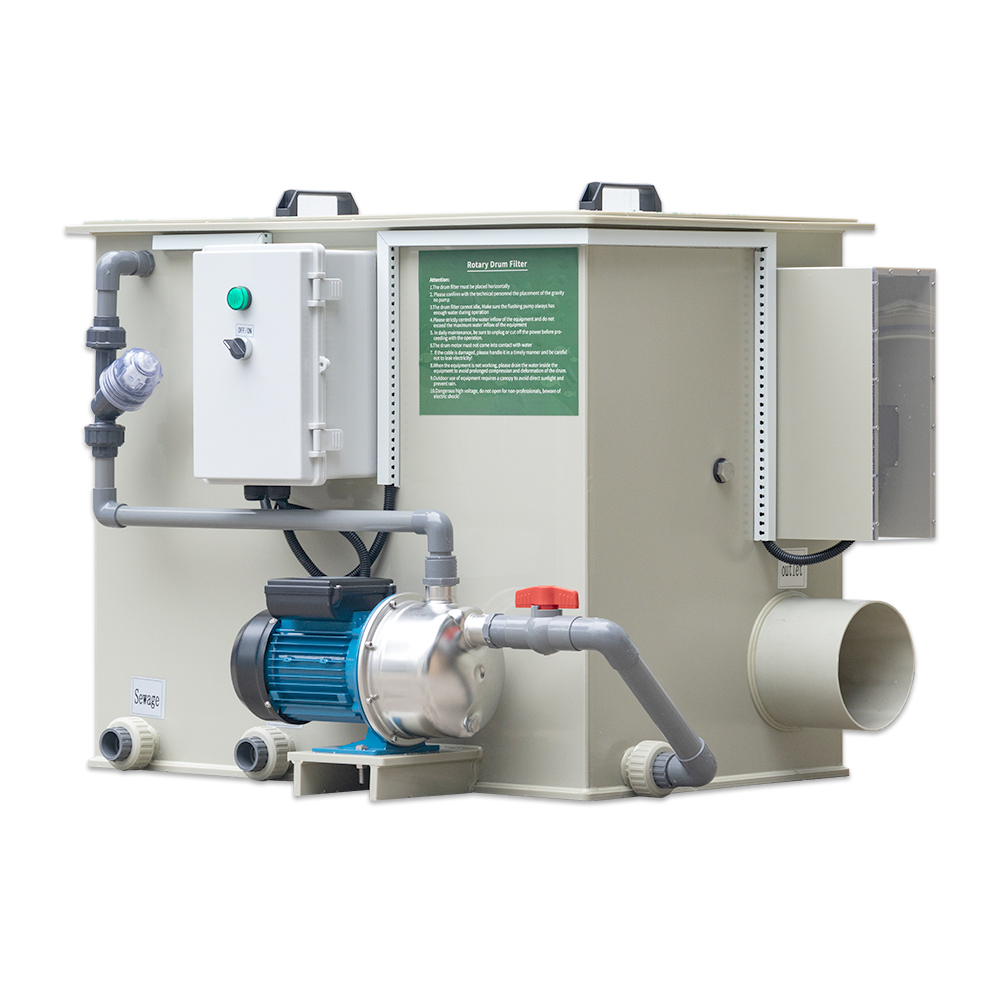

Koi Combination Drum Filter

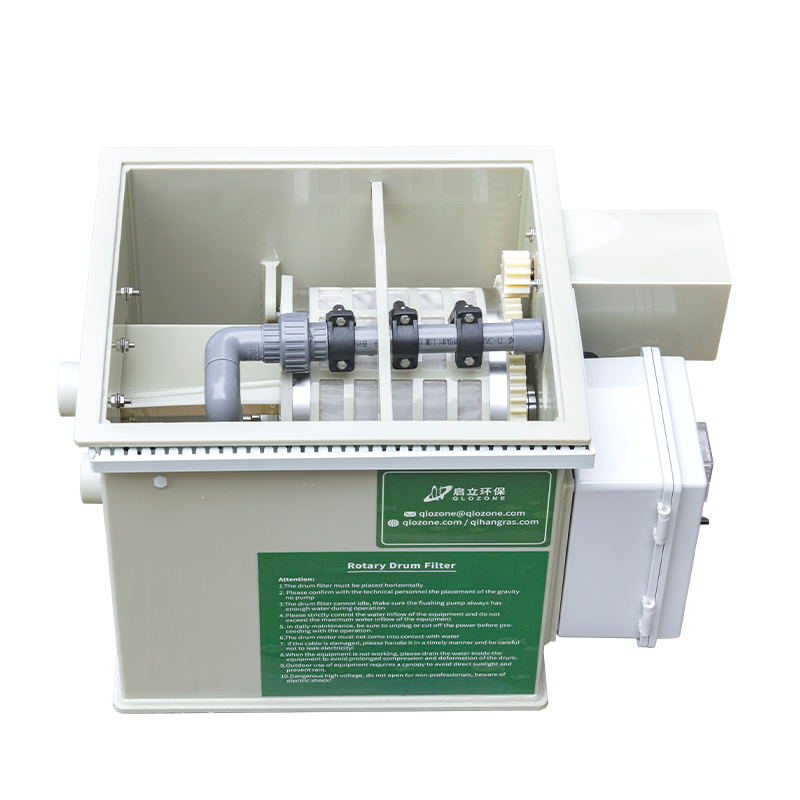

How do Koi Rotary Drum Filters work?
Water gravity flows from the pond to the PM-RDF. Any solids down to 70 microns in size are caught in the filter screen as the pond water flows through the unit. After the pond water has filtered through the PM-RDF, it is pumped through additional filtration for further cleaning and then returned to the pond. As waste builds up on the screen, the water level in the PM-RDF will lower until the preset cleaning level is reached. When this happens, the cleaning nozzles activate and push the accumulated waste into the disposal outlet during the cleaning cycle. After the cleaning cycle is performed, the PM-RDF returns to normal operation.

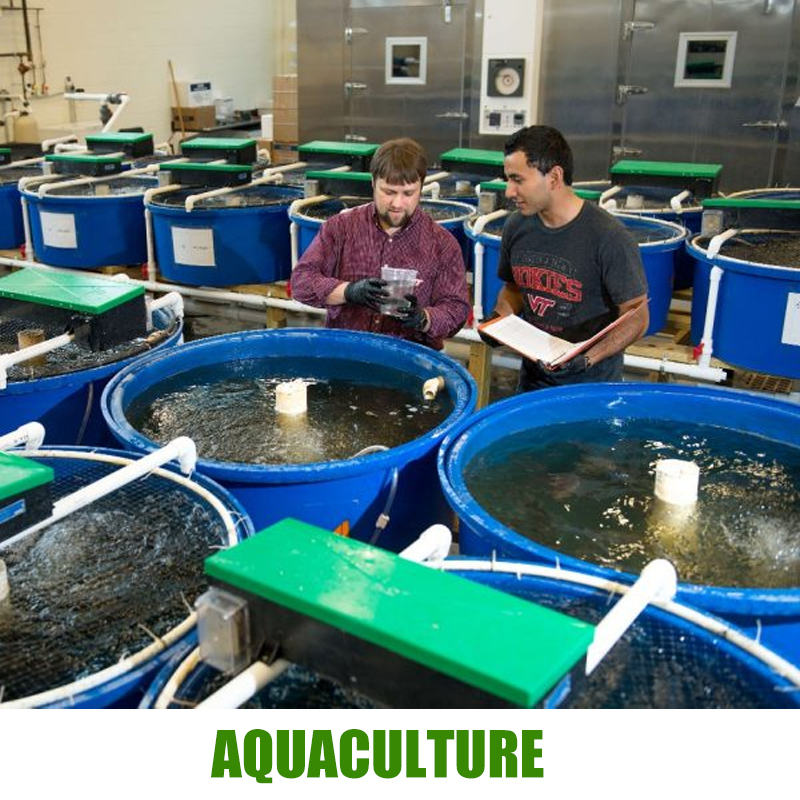

Rotary Drum Filter Application Scenarios
Choose the Suitable Model for Your Project
Choose the best rotary drum filter model for you based on your pond size, water flow, voltage, dimensions, etc.
PM-05
Water flow rate:
• 1320 gallon per hour
• 5 m3 per hour
Power:
• Pump: 80W
• Rotary: 15W
PM-30
Water flow rate:
• 7925 gallon per hour
• 30 m3 per hour
Power:
• Pump: 1000W
• Rotary: 40W
PM-100
Water flow rate:
• 26417 gallon per hour
• 100 m3 per hour
Power:
• Pump: 1000W
• Rotary: 120W
PM-10
Water flow rate:
• 2641 gallon per hour
• 10 m3 per hour
Power:
• Pump: 80W
• Rotary: 15W
PM-60
Water flow rate:
• 15850 gallon per hour
• 60 m3 per hour
Power:
• Pump: 1000W
• Rotary: 40W
PM-150
Water flow rate:
• 39625 gallon per hour
• 150 m3 per hour
Power:
• Pump: 1000W
• Rotary: 180W
