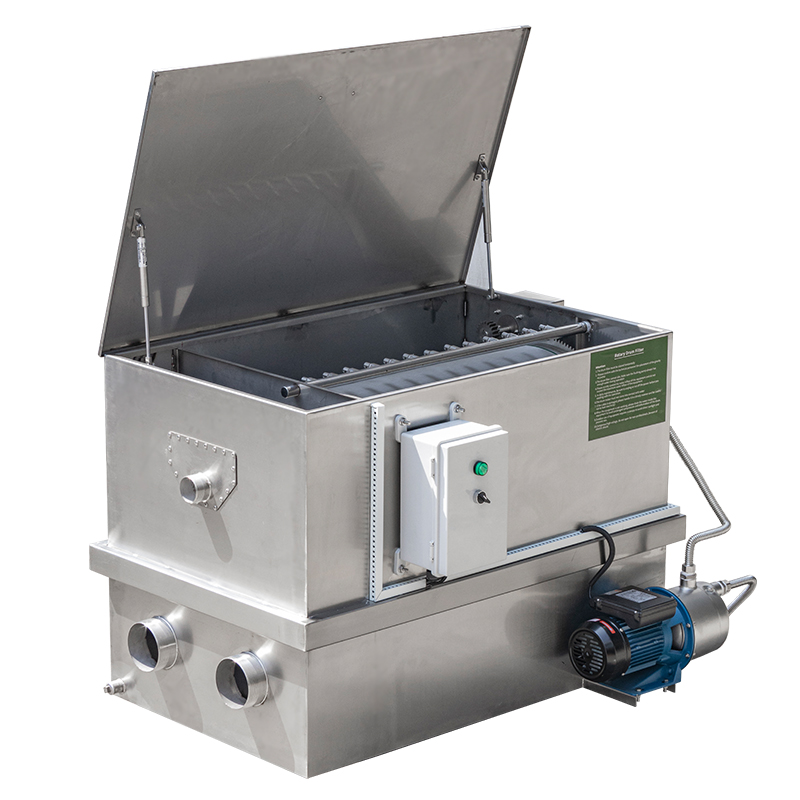

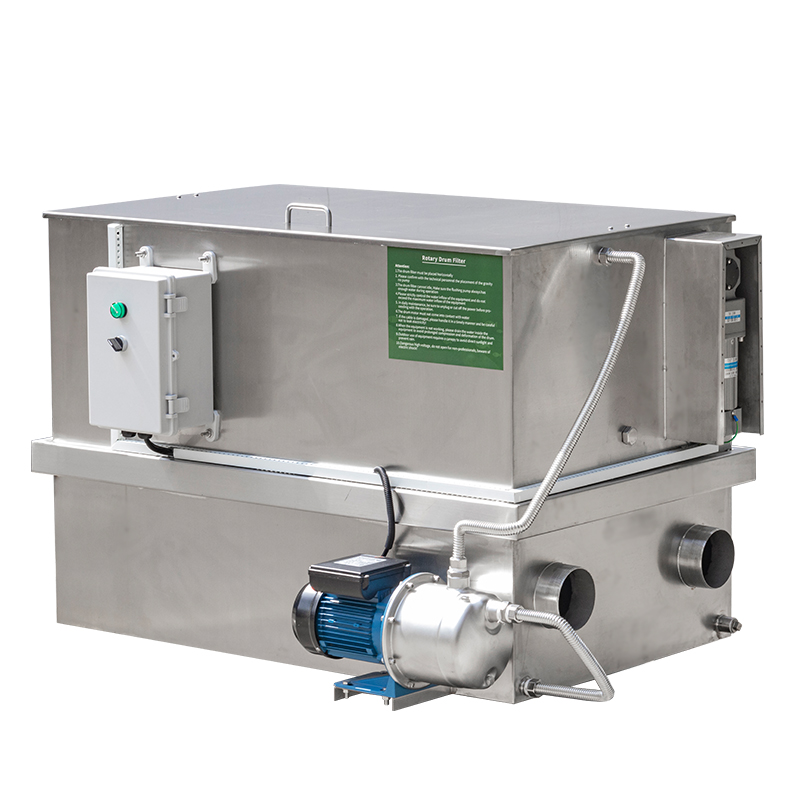

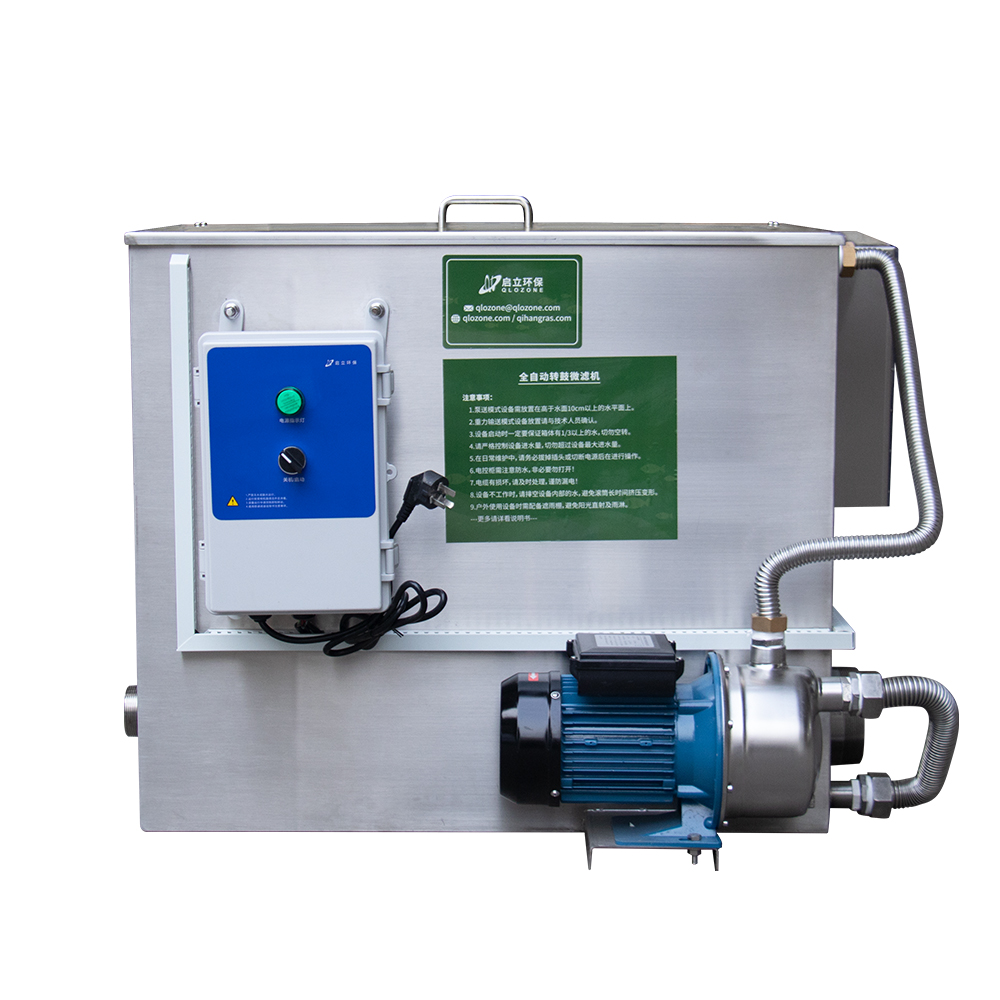

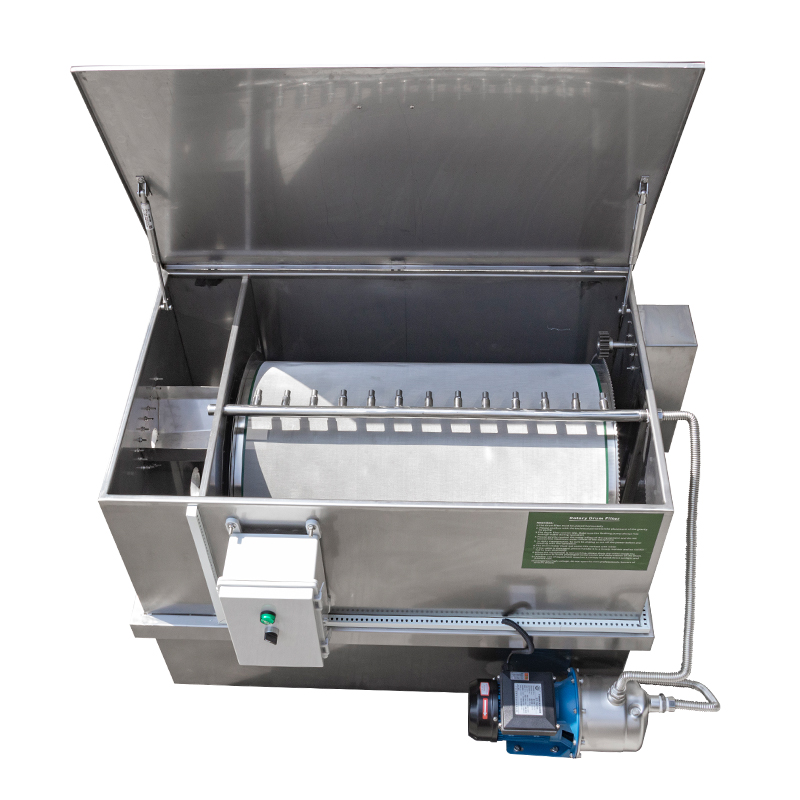

PM Series SS Rotary Drum Filter(30m³/h-200m³/h)
Features:
1.SS316L material 75 micron mesh;
2.Water level sensor+timer control the auto back washing;
3.High pressure auto back wash;
4.SS304 Material case;
5.Integrated control panel box ;
6.Water inelt and outlet size can customized;
7.OEM&ODM support.
Specification
|
Model: |
QL-PM-5S |
QL-PM-10S |
QL-PM-20S |
QL-PM-30S |
QL-PM-50/60S |
QL-PM-80S |
QL-PM-100S |
|
Size(mm): |
435*305*380 |
525*335*400 |
604*500*600 |
755*550*650 |
1085*665*780 |
1225*775*880 |
1405*775*950 |
|
Max flow rate: |
5 m3/h
1320 GPH |
10 m3/h
2650 GPH |
20 m3/h
5300 GPH |
30 m3/h
7925 GPH |
60 m3/h
15850 GPH |
80 m3/h |
100 m3/h |
|
Sewage outlet |
50 mm |
50 mm |
50 mm |
63 mm |
63 mm |
63mm |
63 mm |
|
Inlet Size: |
50 mm |
63 mm |
50*2 mm |
63*2 mm |
110*2 mm |
110*2 mm |
200*2 mm |
|
Outlet Size: |
50 mm |
63 mm |
75*2 mm |
110*2 mm |
110*2 mm |
160*2 mm |
200*2 mm |
|
Backwash Pump |
80W |
80W |
750W |
750W |
1000W |
1000W |
1000W |
|
Rotary Drum Power: |
25W |
25W |
25W |
120W |
180W |
250W |
250W |
Produce Video
Produce Show

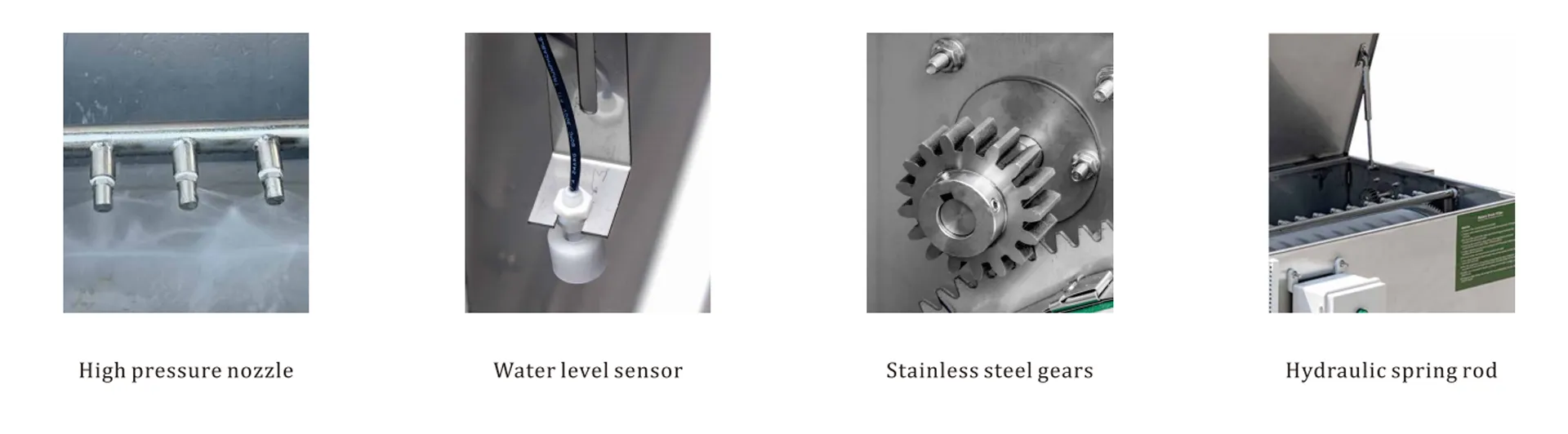

Detail Shows
Customer Case
FAQ
1.Are you manufacturer or trader?
--QLOZONE found in 2015,Integrating production and trade together,,the first manufacturer of KOI pond filter from China.
2.Can I customize the filter?
--Support OEM&ODM orders.
--Customize size for water inlet&outlet.
--Customzie filter design based on your drawing.
--Customize material for indoor or outdoor use.
Contact QLOZONE team to help!
3.What types of pond filters do you offer?
--Combi drum filter QL-YCM series, with drum filter chamber+bio filter chamber with K5 media+UV chamber, fully automatic
--Combi drum filter QL-YCM-B sereis, with drum fitler chamber+UV chamber+bio chamber with matts and bacteria house, matts need to wash it manual
--Bakki shower filter QL-TK sereis, help increse the oxygen in water
--Drum filter QL-PM series, filter the impurity over 70 micron
--Stainless steel manul clean filter QL-YC sereis, with blush,matts, bip ball, bacteria house,ceramic rings
--UV sterilzer
--Pond pump
4.How do I choose the right filter for my pond?
Consider:
--Pond volume (in gallons/liters).
--Fish load (e.g., koi ponds require heavier filtration).
--Flow rate (matched to your pump’s capacity).
Contact QLOZONE team to help!
5.How often should I clean/maintain the filter?
--Mechanical pads: Rinse weekly (use pond water to preserve bacteria).
--Biological media: Clean sparingly (every 2–3 months) to avoid disrupting bacteria colonies.
--UV: Replace annually.
6.Can I use the filter in winter?
Yes, but:
--Biological filters: Pause use if water freezes; bacteria become dormant.
--Mechanical/UV filters: Run continuously if the pond isn’t frozen.
7.Do I need a UV filter if I already have a biological filter?
--UV filters are optional but recommended for green water (algae) control. Biological filters alone won’t remove algae.
8.How long does it take for a new filter to establish beneficial bacteria?
--Typically 4–6 weeks. Use a bacterial starter culture to speed up the process.
9.What’s the warranty period?
--All filters come with a year limited warranty,lifelong technical support.
10.Where can I buy replacement parts/media?
--Contact QLOZONE team for Support.
11.Still have questions?
Email us at qlozone@qlozone.com or call +86 185 2073 9875.
