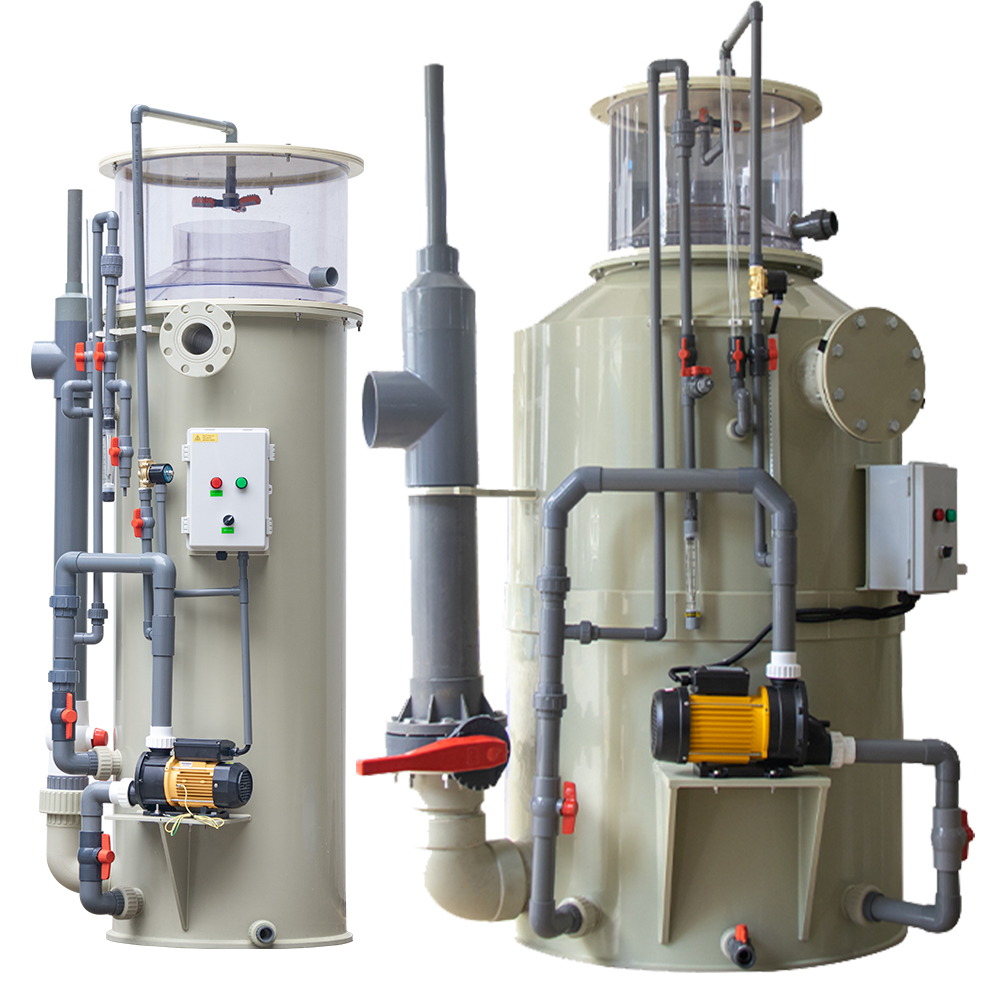

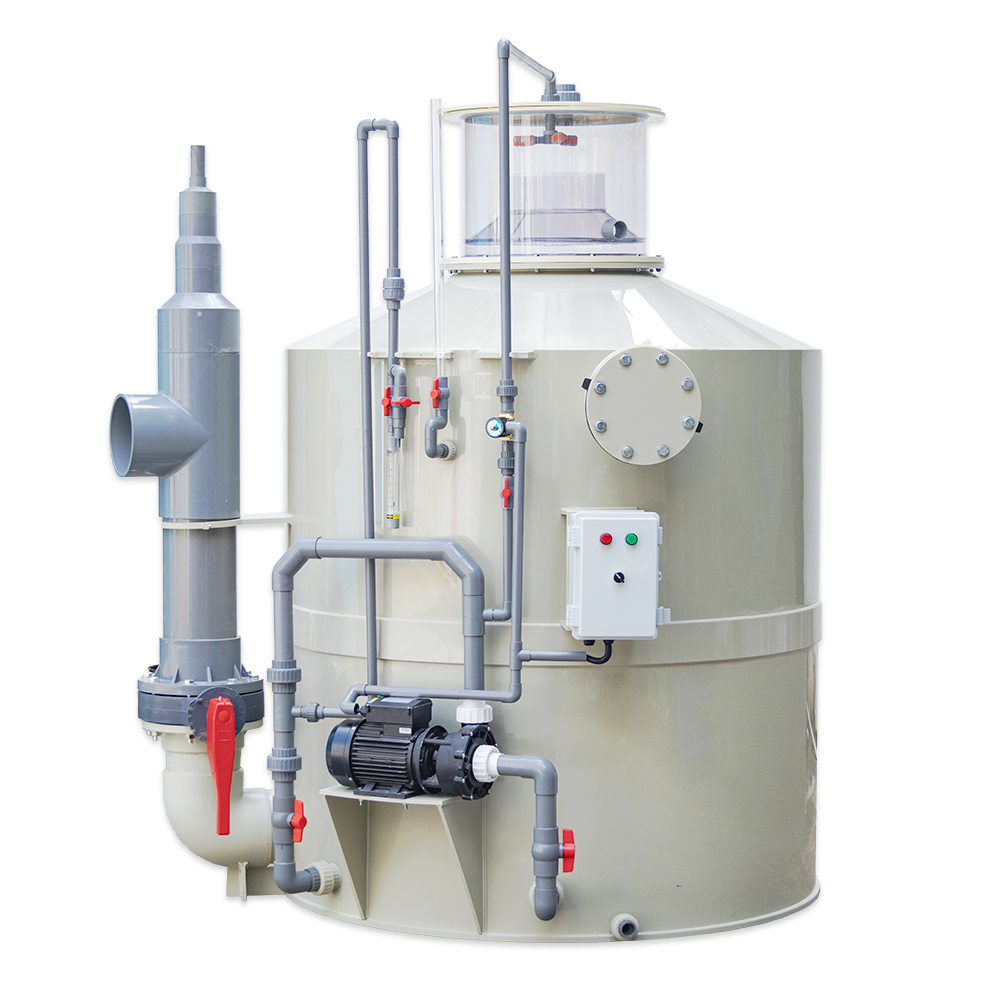

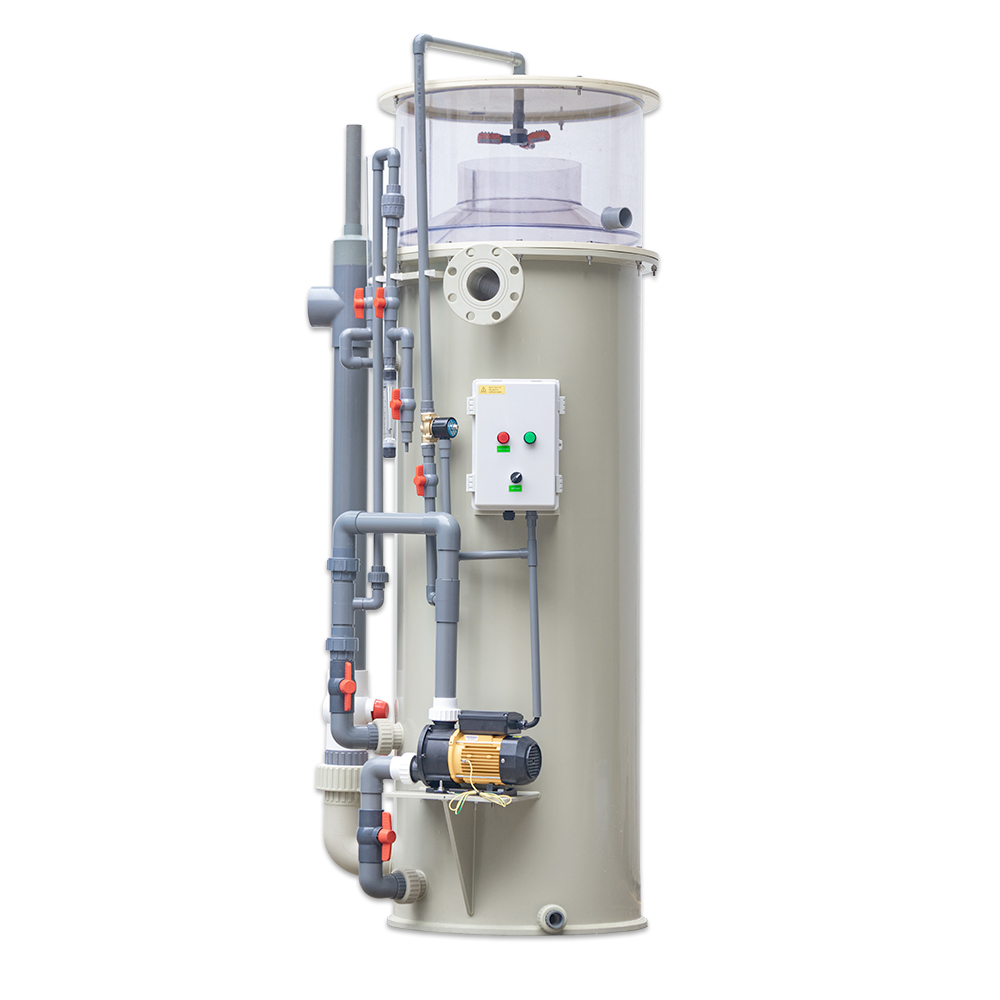

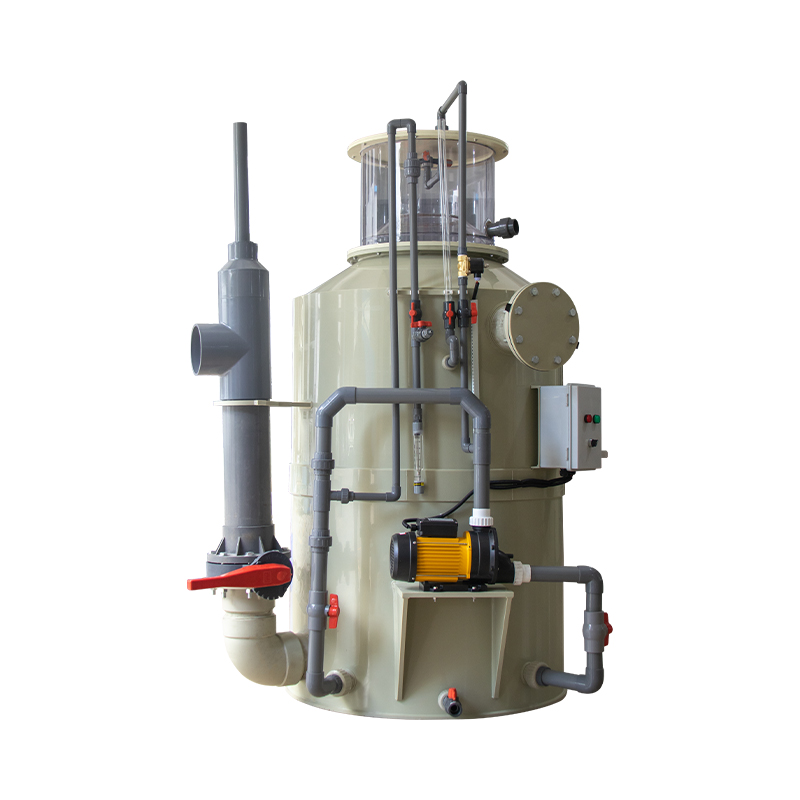

Protein Skimmer (With Collecting Cup)
Features：
Protein Skimmer will be remove fish feces , feeds and other organics before they are changed into ammonification , to avoid them become poisonous substances . Also it will remove humic substances and organic acid increase water clarity and make the PH value stable.
There has emptying outlet on the bottom, so can drain all the water away when not use the equipment, to avoid grow germs.
It has the function of Ozone reaction tower. lnject zone to disinfect, sterilize and remove algae and improve the protein separation effect at the same time.

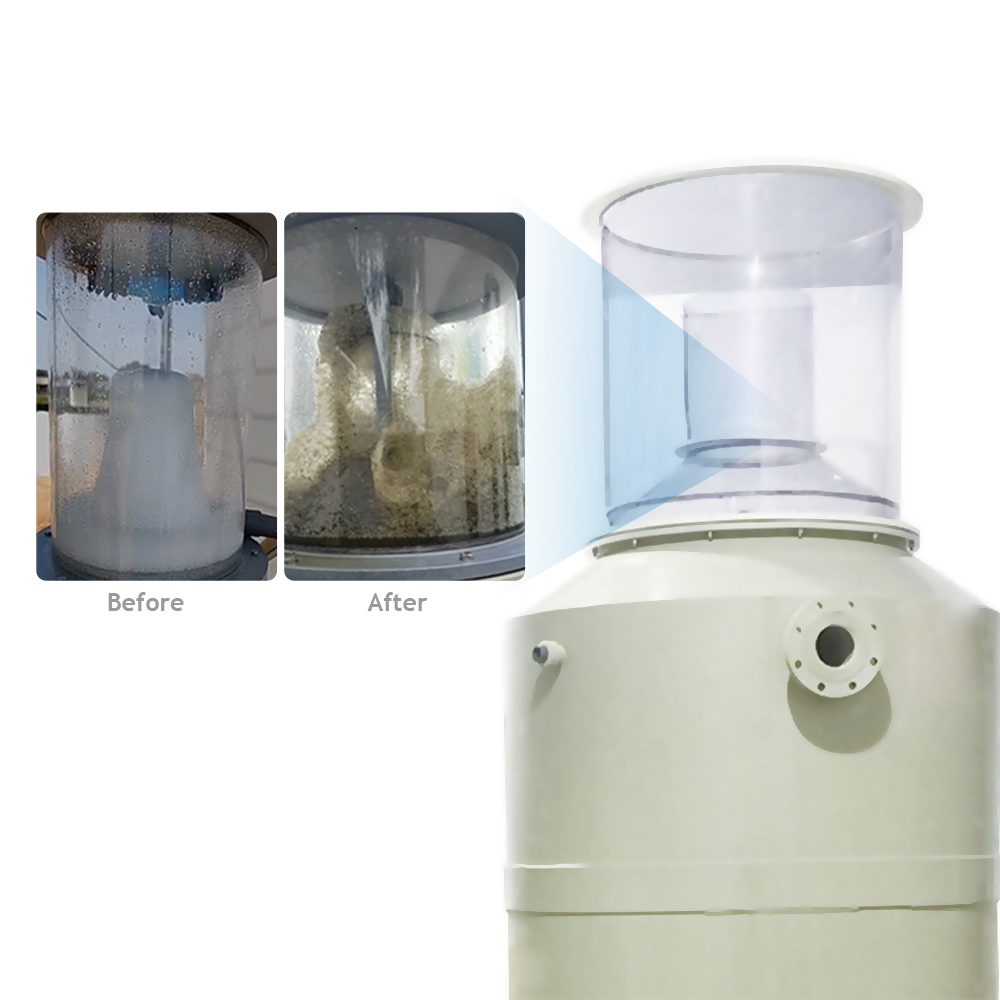

The foam is collected by a foam collection cup and then drained by a backwashing device,lt is environmentally friendly and practical.
Specification
| Model | QL-DF-10 | QL-DF-15 | QL-DF-20 | QL-DF-30 | QL-DF-50 | QL-DF-60 | QL-DF-80 | QL-DF-100 | QL-DF-120 | QL-DF-150 | QL-DF-200 |
| Max Flow（m3/h） | 10 | 15 | 20 | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 200 |
| Retention coefficient | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Diameter(mm) | 600 | 600 | 700 | 850 | 1000 | 1200 | 1200 | 1430 | 1500 | 1650 | 2000 |
| Wash cup height(mm) | 500 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Barrel height(mm) | 1180 | 1769 | 1733 | 1763 | 2123 | 1769 | 2359 | 2077 | 2265 | 2340 | 2123 |
| Total height | 1680 | 2469 | 2433 | 2463 | 2823 | 2469 | 3059 | 2777 | 2965 | 3040 | 2823 |
| Inlet diameter(mm) | 75 | 90 | 110 | 160 | 160 | 160 | 200 | 200 | 250 | 250 | 315 |
| Outlet diameter(mm) | 75 | 90 | 110 | 160 | 160 | 160 | 200 | 200 | 250 | 250 | 315 |
Produce Video
Produce Show

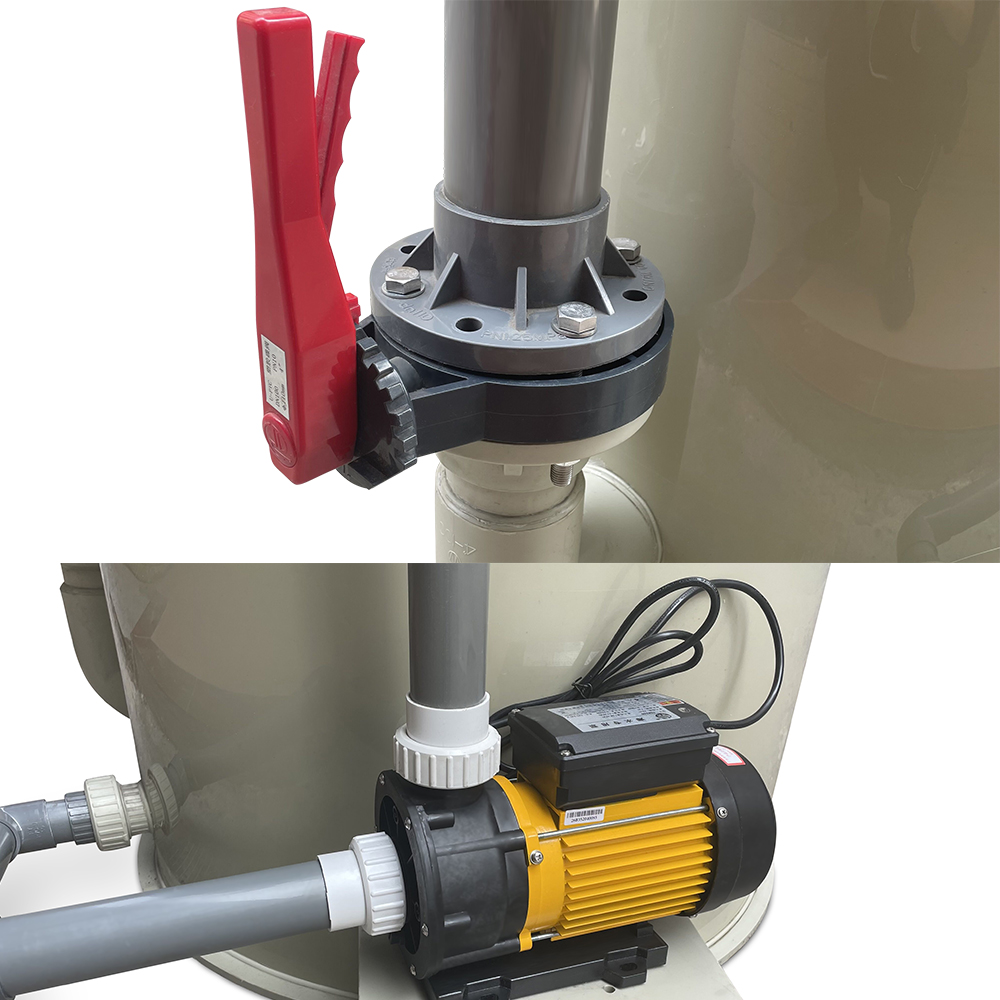

Detail Shows

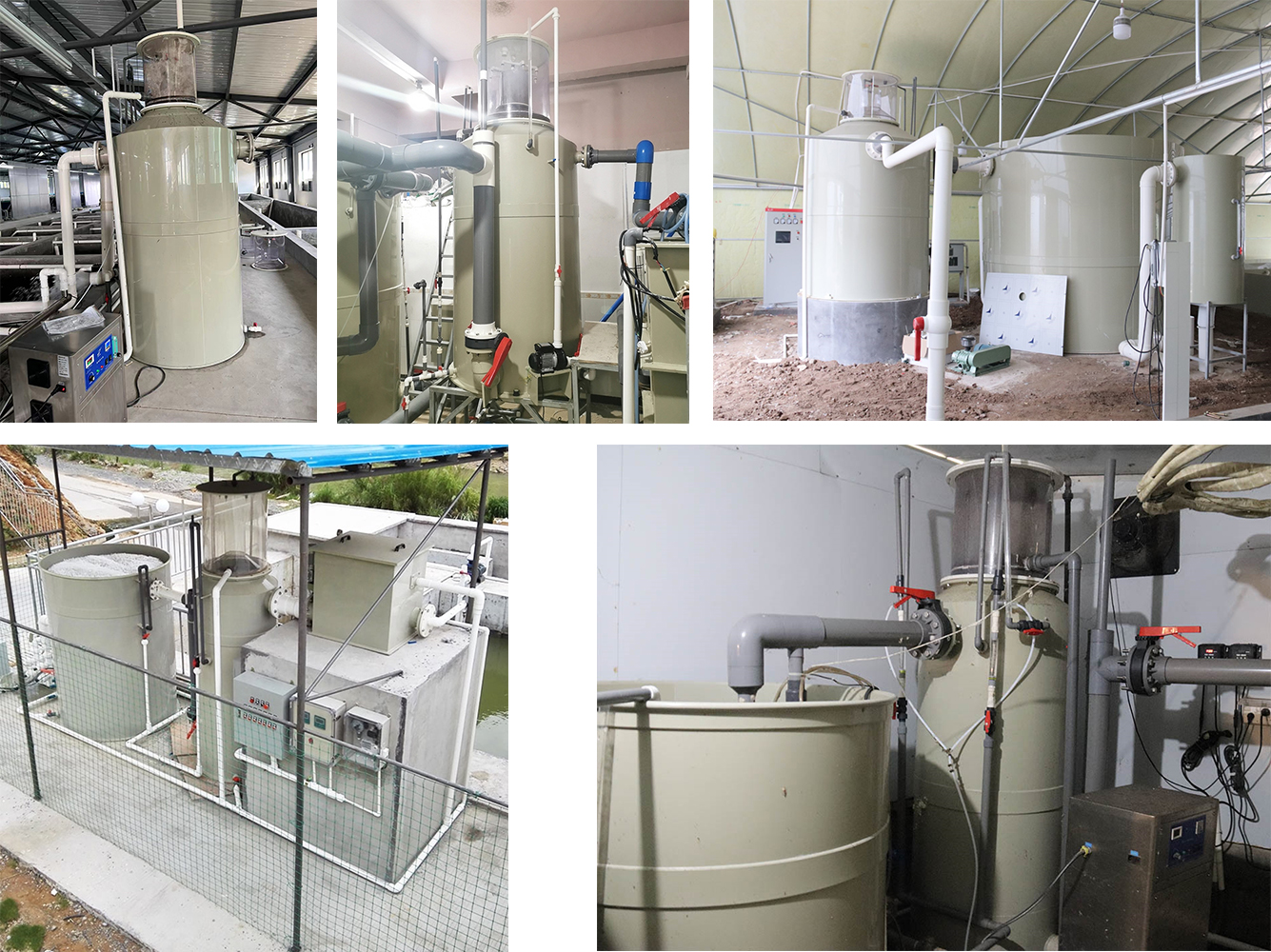

Customer Case
FAQ
1.Are you manufacturer or trader?
--QLOZONE found in 2015,Integrating production and trade together,,the first manufacturer of KOI pond filter from China.
2.Can I customize the filter?
--Support OEM&ODM orders.
--Customize size for water inlet&outlet.
--Customzie filter design based on your drawing.
--Customize material for indoor or outdoor use.
Contact QLOZONE team to help!
3.What types of pond filters do you offer?
--Combi drum filter QL-YCM series, with drum filter chamber+bio filter chamber with K5 media+UV chamber, fully automatic
--Combi drum filter QL-YCM-B sereis, with drum fitler chamber+UV chamber+bio chamber with matts and bacteria house, matts need to wash it manual
--Bakki shower filter QL-TK sereis, help increse the oxygen in water
--Drum filter QL-PM series, filter the impurity over 70 micron
--Stainless steel manul clean filter QL-YC sereis, with blush,matts, bip ball, bacteria house,ceramic rings
--UV sterilzer
--Pond pump
4.How do I choose the right filter for my pond?
Consider:
--Pond volume (in gallons/liters).
--Fish load (e.g., koi ponds require heavier filtration).
--Flow rate (matched to your pump’s capacity).
Contact QLOZONE team to help!
5.How often should I clean/maintain the filter?
--Mechanical pads: Rinse weekly (use pond water to preserve bacteria).
--Biological media: Clean sparingly (every 2–3 months) to avoid disrupting bacteria colonies.
--UV: Replace annually.
6.Can I use the filter in winter?
Yes, but:
--Biological filters: Pause use if water freezes; bacteria become dormant.
--Mechanical/UV filters: Run continuously if the pond isn’t frozen.
7.Do I need a UV filter if I already have a biological filter?
--UV filters are optional but recommended for green water (algae) control. Biological filters alone won’t remove algae.
8.How long does it take for a new filter to establish beneficial bacteria?
--Typically 4–6 weeks. Use a bacterial starter culture to speed up the process.
9.What’s the warranty period?
--All filters come with a year limited warranty,lifelong technical support.
10.Where can I buy replacement parts/media?
--Contact QLOZONE team for Support.
11.Still have questions?
Email us at qlozone@qlozone.com or call +86 185 2073 9875.
