RECYCLING AQUACULTURE SKID FILTRATION SYSTEMS

Description

1.Application

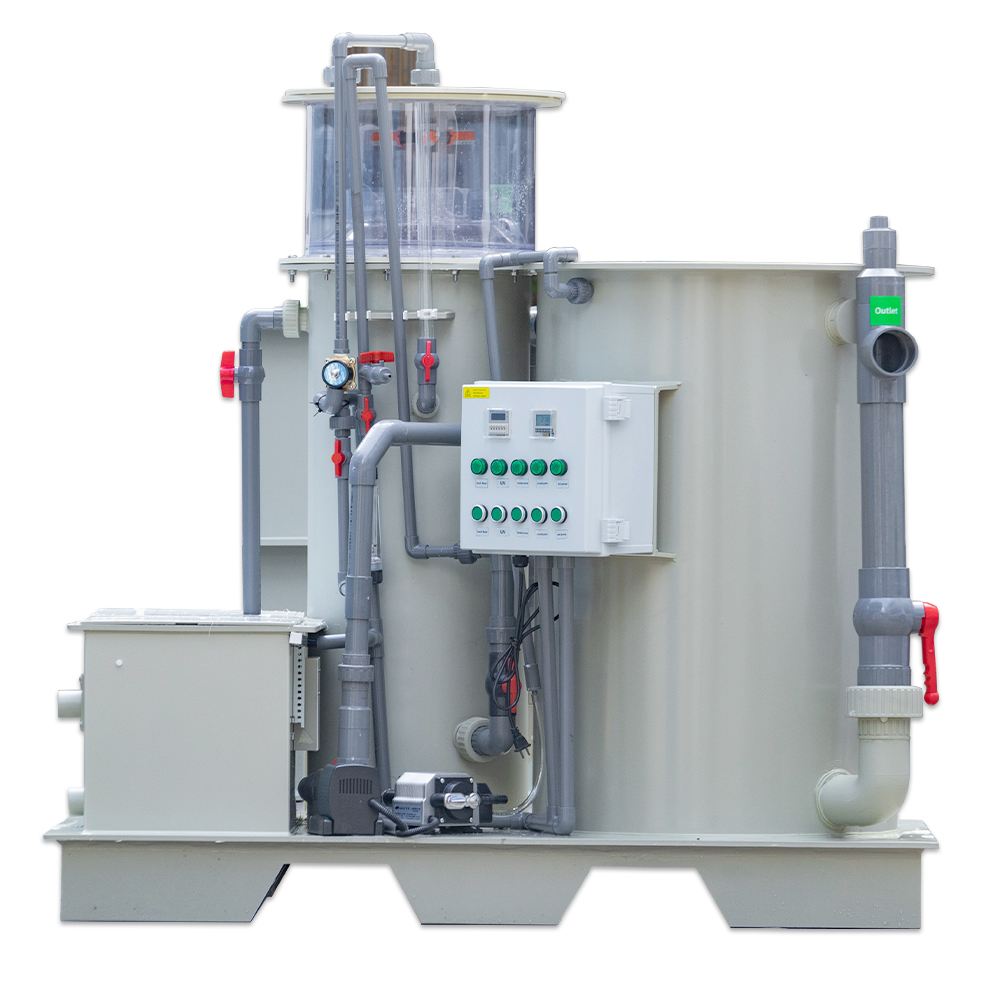

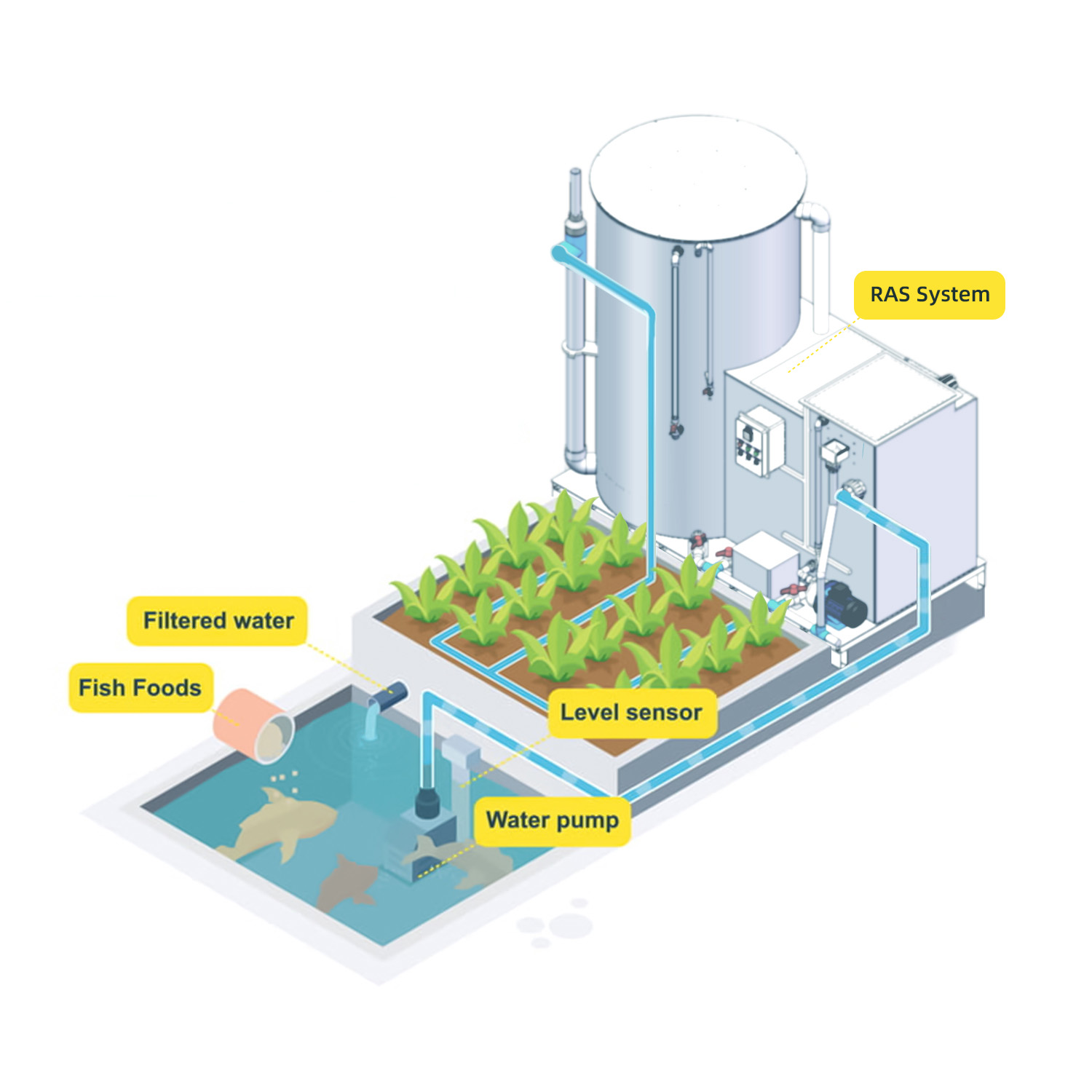

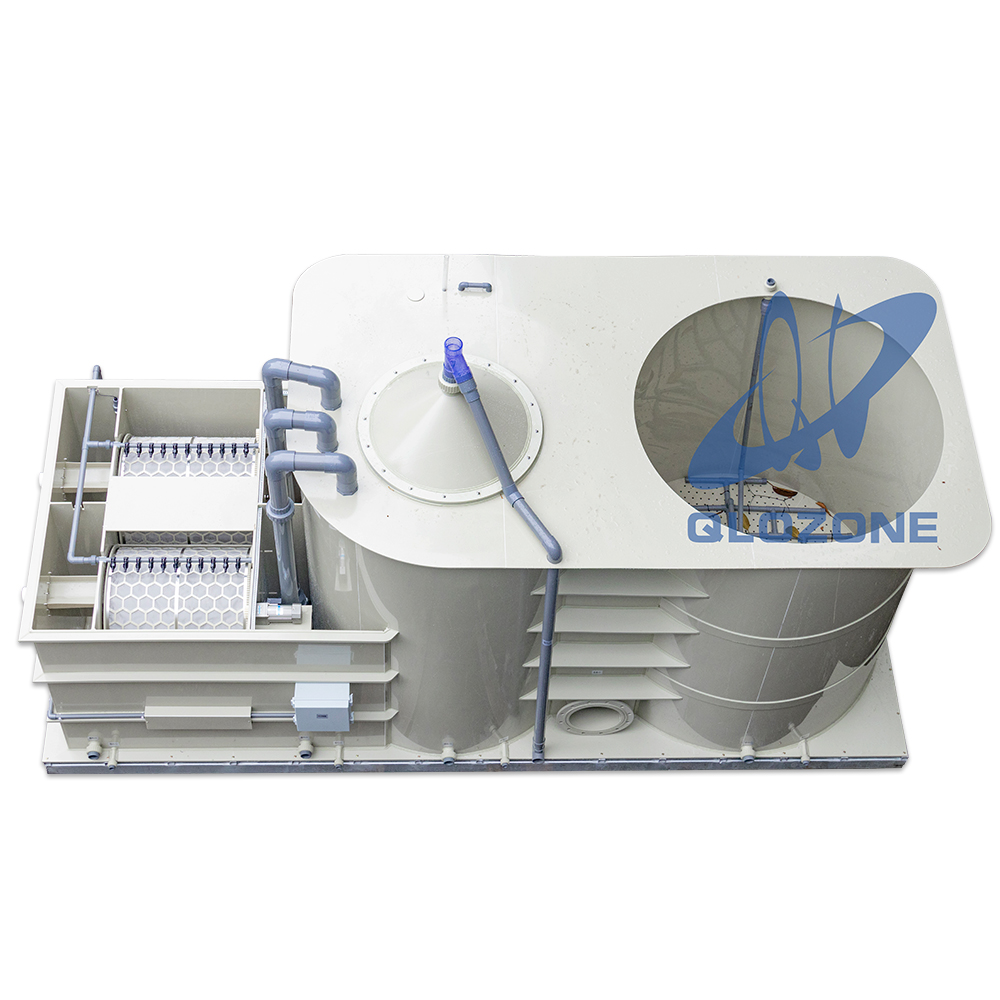

QLOZONE all in one RAS system cover a wide range of the Recirculated Aquaculture Systems applications.RAS Skid Unit forms a user-friendly plug and play system.

2.Advantage
QLOZONE all in one RAS system consisting of all the essential equipment for Recirculated Aquaculture Systems, focusing on increased efficiency of mechanical, biological, chemical filtration, ozone infusion and UV disinfection. Our Skids are designed for optimized TAN (Total Ammonia Nitrogen) removal rate in the lower footprint.

3.The all in one RAS system equipped with:

*Drum filter
*High Performance built in Protein Fractionator with optional auto-wash system & auto-foam levelling
*Protein Fractionator Venturi Pump
*Trickle Filter Bio Reactor with Air Blower
*UV
*Ozone Generator
*Control cabinet

Optional

*System Main Feed Pump
*PLC
*Heat Pump
*Water quality tester
*Oxygen generator and oxygen cone

The body of the all in one RAS System is made of PP. Hence, this minimizes the osmosis oxidation and provides durability against harsh operational conditions. Our RAS skids come fully assembled and hydrotested for fast and trouble-free installation on site. For optimum mechanical filtration capacity, the mechanical pressurized filter contains glass media to achieve better mechanical filtration and energy saving operation.

Specification

Produce Video

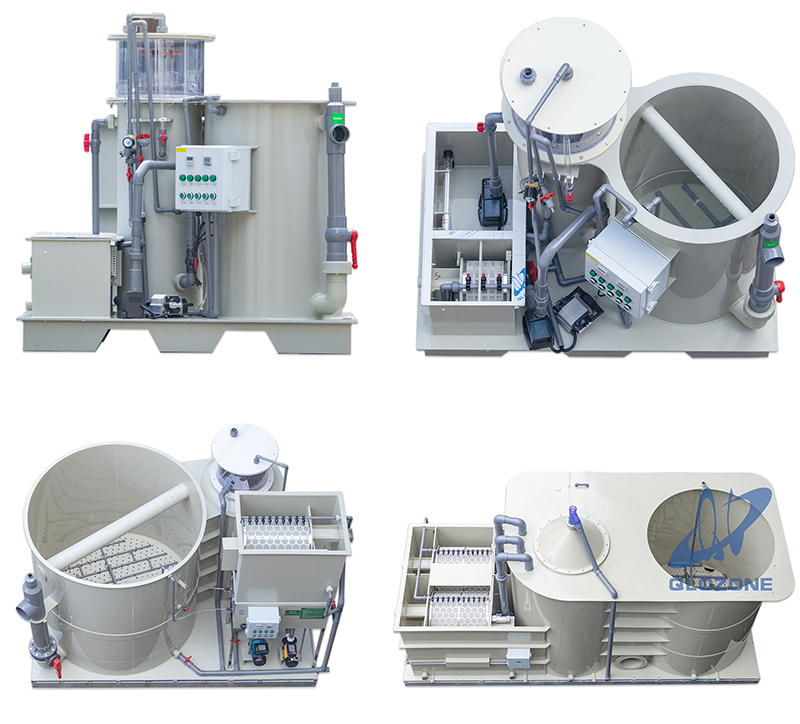

Produce Show

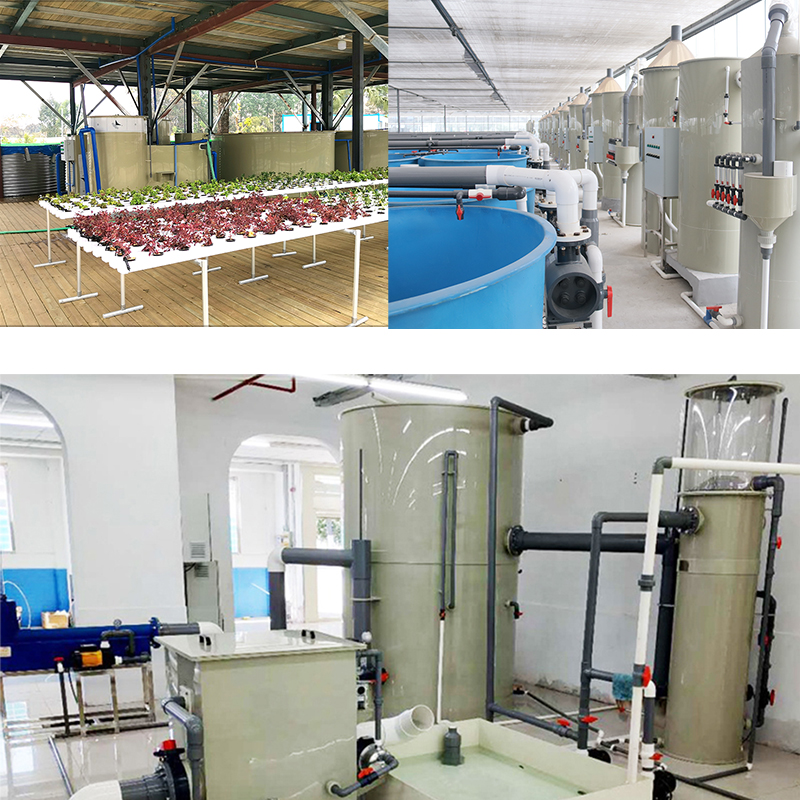

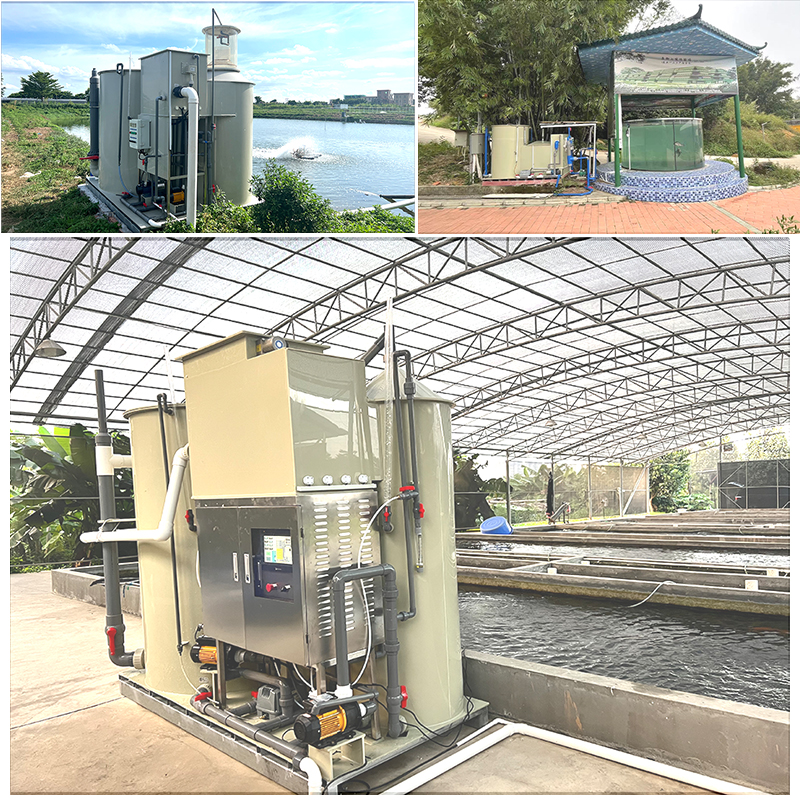

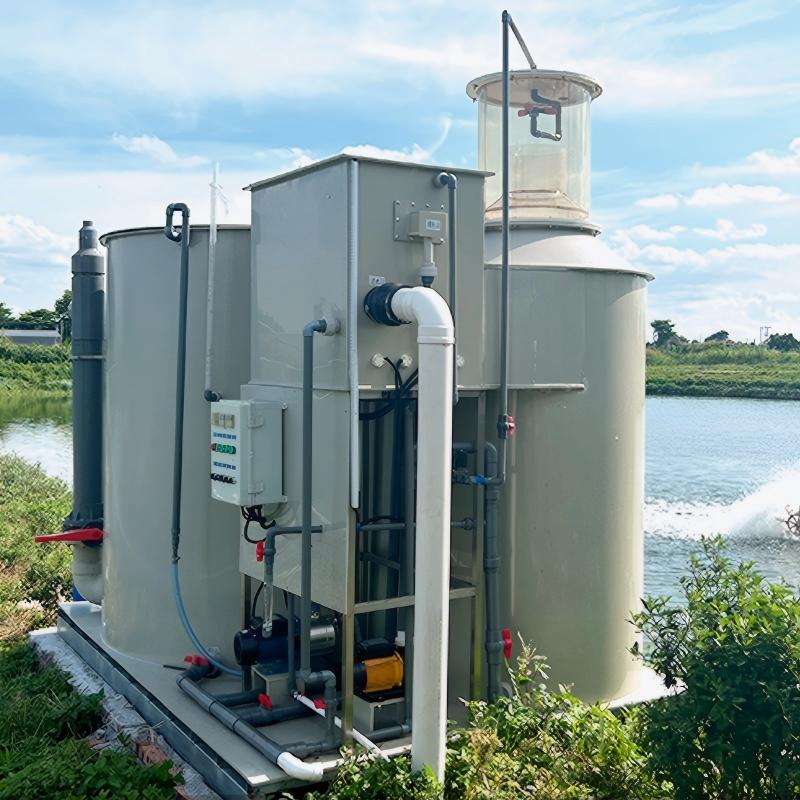

Customer Case

FAQ

1.Are you manufacturer or trader?
  --QLOZONE found in 2015,Integrating production and trade together,,the first manufacturer of KOI pond filter from China.

2. Can I customize the filter?
  --Support OEM&ODM orders.
  --Customize size for water inlet&outlet.
  --Customzie filter design based on your drawing.
  --Customize material for indoor or outdoor use.
   Contact QLOZONE team to help!

3.What types of pond filters do you offer?
   --Combi drum filter QL-YCM series, with drum filter chamber+bio filter chamber with K5 media+UV chamber, fully automatic
   --Combi drum filter QL-YCM-B sereis, with drum fitler chamber+UV chamber+bio chamber with matts and bacteria house, matts need to wash it manual
   --Bakki shower filter QL-TK sereis, help increse the oxygen in water
   --Drum filter QL-PM series, filter the impurity over 70 micron
   --Stainless steel manul clean filter QL-YC sereis, with blush,matts, bip ball, bacteria house,ceramic rings
   --UV sterilzer
   --Pond pump

4.How do I choose the right filter for my pond?
  Consider:
  --Pond volume (in gallons/liters).
  --Fish load (e.g., koi ponds require heavier filtration).
  --Flow rate (matched to your pump’s capacity).
   Contact QLOZONE team to help!

5.How often should I clean/maintain the filter?
  --Mechanical pads: Rinse weekly (use pond water to preserve bacteria).
  --Biological media: Clean sparingly (every 2–3 months) to avoid disrupting bacteria colonies.
  --UV: Replace annually.

6.Can I use the filter in winter?
   Yes, but:
   --Biological filters: Pause use if water freezes; bacteria become dormant.
   --Mechanical/UV filters: Run continuously if the pond isn’t frozen.

7.Do I need a UV filter if I already have a biological filter?
  --UV filters are optional but recommended for green water (algae) control. Biological filters alone won’t remove algae.

8.How long does it take for a new filter to establish beneficial bacteria?
--Typically 4–6 weeks. Use a bacterial starter culture to speed up the process.

9.What’s the warranty period?
--All filters come with a year limited warranty,lifelong technical support.

10.Where can I buy replacement parts/media?
--Contact QLOZONE team for Support.

11.Still have questions?
Email us at qlozone@qlozone.com or call +86 185 2073 9875.
