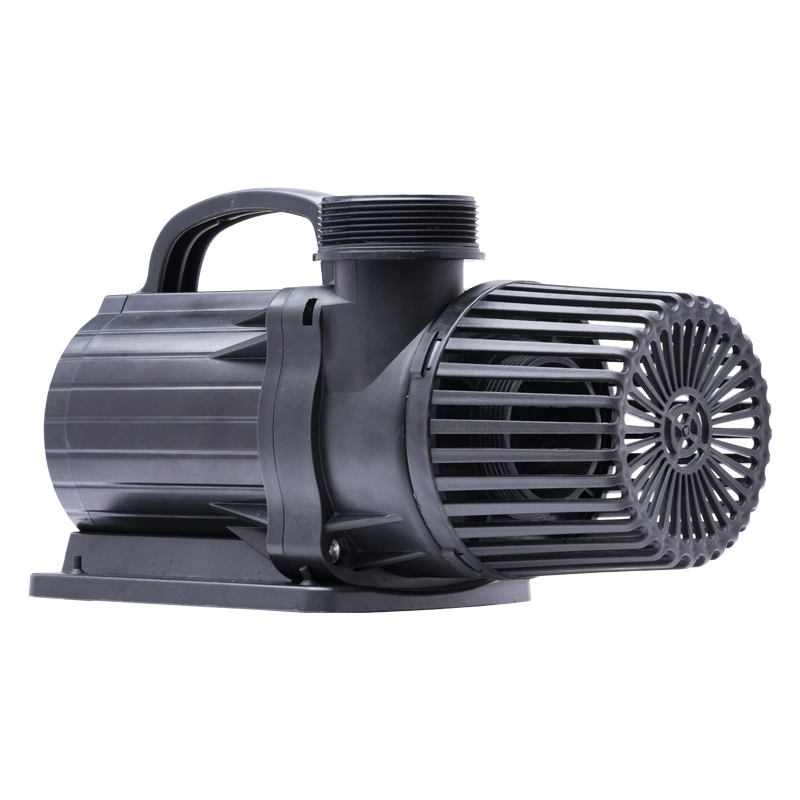

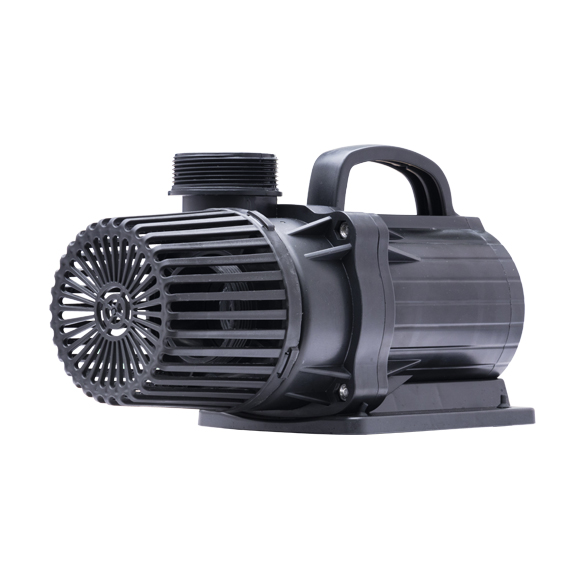

QL-521 Series SINE DC WATER PUMP
Features:
Separate motor and drive;

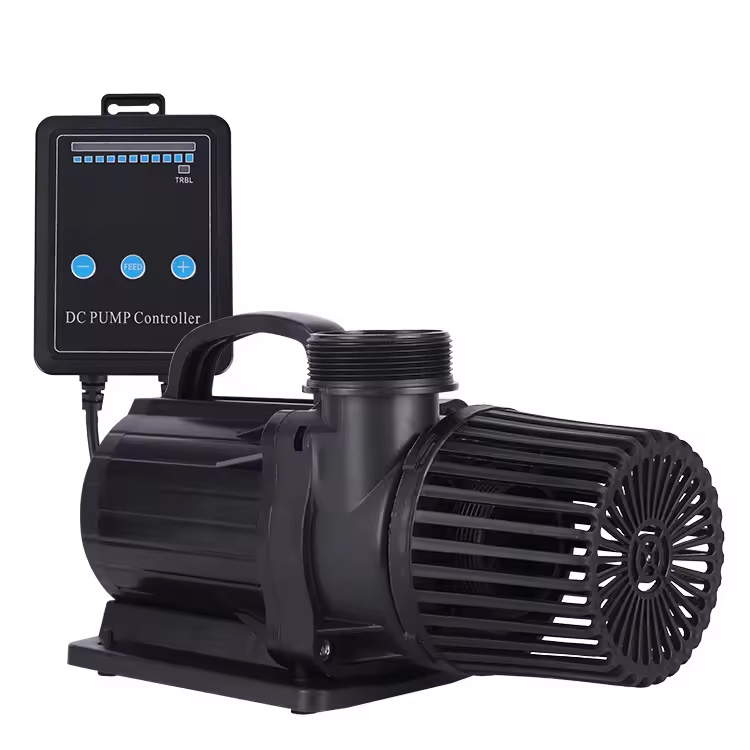

Adjustablen flow controller,energy saving;
IC chip control,lack of water,stuck protection;
Suitable for freshwater and marine use;
5 minutes stop feeding function.
Specification
|
Model: |
Power |
Head of Delivery |
Inlet/Outlet(mm) |
Voltage |
Size(mm) |
|
1000L/H |
15W |
1.8M |
18 20 |
DC24V |
120×67×93 |
|
2000L/H |
20W |
2.2M |
18 20 |
DC24V |
120×67×93 |
|
3000L/H |
28W |
2.8M |
20 25 |
DC24V |
162×79×106 |
|
4000L/H |
32W |
2.8M |
DC24V |
162×79×106 |
|
|
5000L/H |
43W |
3.2M |
20 26 32 |
DC24V |
210×89×119 |
|
6000L/H |
55W |
3.6M |
20 26 32 |
DC24V |
210×89×119 |
|
9000L/H |
80W |
4.3M |
20 26 32 |
DC24V |
210×89×119 |
|
12000L/H |
85W |
4.8M |
20 25 32 38 |
DC24V |
210×89×119 |
|
15000L/H |
110W |
6.0M |
25 32 40 50 |
DC48V |
262×126×150 |
|
20000L/H |
150W |
6.3M |
25 32 40 50 |
DC48V |
262×126×150 |
|
25000L/H |
180W |
7.0M |
25 32 40 50 |
DC48V |
262×126×150 |
Produce Video
Produce Show
Detail Shows
FAQ
1.Are you manufacturer or trader?
--QLOZONE found in 2015,Integrating production and trade together,,the first manufacturer of KOI pond filter from China.
2.Can I customize the filter?
--Support OEM&ODM orders.
--Customize size for water inlet&outlet.
--Customzie filter design based on your drawing.
--Customize material for indoor or outdoor use.
Contact QLOZONE team to help!
3.What types of pond filters do you offer?
--Combi drum filter QL-YCM series, with drum filter chamber+bio filter chamber with K5 media+UV chamber, fully automatic
--Combi drum filter QL-YCM-B sereis, with drum fitler chamber+UV chamber+bio chamber with matts and bacteria house, matts need to wash it manual
--Bakki shower filter QL-TK sereis, help increse the oxygen in water
--Drum filter QL-PM series, filter the impurity over 70 micron
--Stainless steel manul clean filter QL-YC sereis, with blush,matts, bip ball, bacteria house,ceramic rings
--UV sterilzer
--Pond pump
4.How do I choose the right filter for my pond?
Consider:
--Pond volume (in gallons/liters).
--Fish load (e.g., koi ponds require heavier filtration).
--Flow rate (matched to your pump’s capacity).
Contact QLOZONE team to help!
5.How often should I clean/maintain the filter?
--Mechanical pads: Rinse weekly (use pond water to preserve bacteria).
--Biological media: Clean sparingly (every 2–3 months) to avoid disrupting bacteria colonies.
--UV: Replace annually.
6.Can I use the filter in winter?
Yes, but:
--Biological filters: Pause use if water freezes; bacteria become dormant.
--Mechanical/UV filters: Run continuously if the pond isn’t frozen.
7.Do I need a UV filter if I already have a biological filter?
--UV filters are optional but recommended for green water (algae) control. Biological filters alone won’t remove algae.
8.How long does it take for a new filter to establish beneficial bacteria?
--Typically 4–6 weeks. Use a bacterial starter culture to speed up the process.
9.What’s the warranty period?
--All filters come with a year limited warranty,lifelong technical support.
10.Where can I buy replacement parts/media?
--Contact QLOZONE team for Support.
11.Still have questions?
Email us at qlozone@qlozone.com or call +86 185 2073 9875.
